Recycling and Waste Recovery Plant in the Grand-Est Region

27 March 2023

March 22, 2023

Site: Recycling and waste recovery plant in the Grand-Est region

Year: 2022

Our client is a major player in the recycling and recovery of waste in the Grand-Est region.

We have been working with this client for more than 10 years in order to treat different sources of odors present on the site.

Odor Treatment:

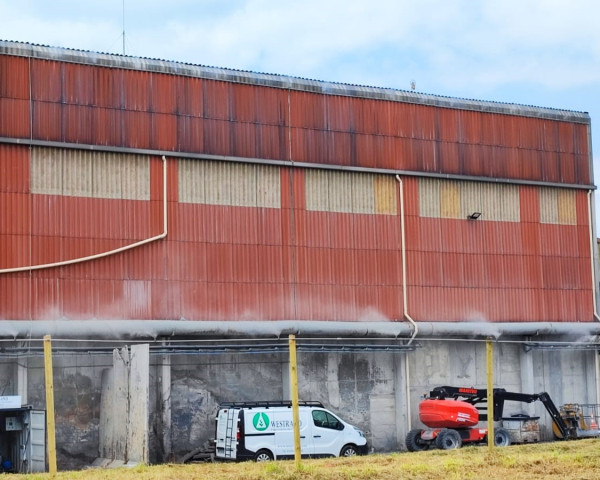

In order to control ammonia odors from a storage building, we installed a new 316 stainless steel high-pressure spray bar on the upper part of the building.

Spraying of a low concentration (0.1%) odor neutralizer ensures an effective neutralization of ammonia odors.

The engineering solution consists of a 100 m high-pressure spray bar made of 316 stainless steel.

Nozzles are spaced 1.5 m apart and have a flow rate of 5 L/h each. Fixing accessories are also in stainless steel 316 (very high concentration of ammonia on the upper part of the building). The peripheral engineering (high pressure unit, dosing pump, frequency converter, etc.) is installed in a technical room. The whole system is controlled by a weather station in order to treat only when necessary (wind direction and speed, temperature, defined time slots).

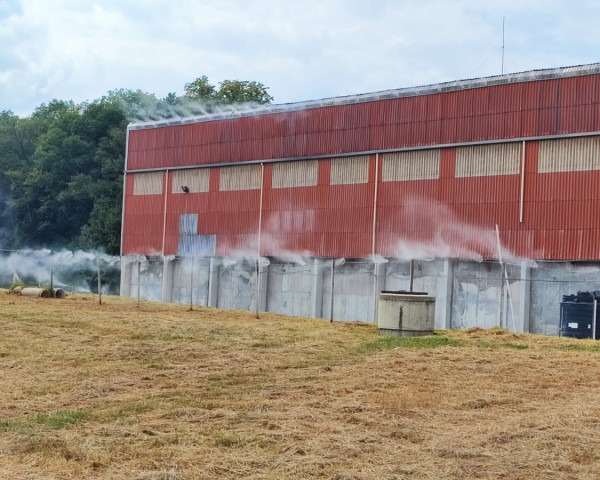

The misting bar installed on the lower part allows to treat other sources of odors (storage of finished products in particular).
